Hell's Angel - Suzuki Zen Estilo LXi - Midnight Black - March 2007

[DAG2017]

New tyres. Nankang N729 165/65R13 Tubeless - ₹ 10,000.00 for set of 4. From The Tire Club. Supposed to get 4 new tubeless valves free, but 2 rims were rusted and they were not confident in removing old ones, so only gave 2 and used the old ones. Alignment and balancing free.

Hello,
I also own Zen Estilo 2009. Type 1.
Mine is VXI, hence came with 155/65/R13 Tyres. Car came withl JK shoes which lasted for 30K , later it was on Apollo Accelere. I am happy with these Apollo tyres, completed 38K on apollos & will last for few more i hope. Had only 1 puncture till time (touch wood) & handling & ride is also good, noise is Ok.
Now I am willing to Upgrade to either 155/70/R13 or 165/65R13, as like you.
Will it fit directly on Stock rims. Is there any scrapping sideways or wheel wells?

Your feedback is most important for me.



[prasadvs]

Hello brother
Do you know anything about convert estilo type I to type II at least only front



[deville_56]

Hello,
I also own Zen Estilo 2009. Type 1.
Mine is VXI, hence came with 155/65/R13 Tyres. Car came withl JK shoes which lasted for 30K , later it was on Apollo Accelere. I am happy with these Apollo tyres, completed 38K on apollos & will last for few more i hope. Had only 1 puncture till time (touch wood) & handling & ride is also good, noise is Ok.
Now I am willing to Upgrade to either 155/70/R13 or 165/65R13, as like you.
Will it fit directly on Stock rims. Is there any scrapping sideways or wheel wells?

Your feedback is most important for me.

165/65-13 fits without any fouling.

Hello brother
Do you know anything about convert estilo type I to type II at least only front

Cross members and internal structures are different.



[DAG2017]

165/65-13 fits without any fouling.



Cross members and internal structures are different.

Thanks but will it fit on stock rims directly or will have to change? You have changed rims to Lancers Rims hence this query.



[deville_56]

Thanks but will it fit on stock rims directly or will have to change? You have changed rims to Lancers Rims hence this query.

Fits in stock rim. Wider rims the better.



[deville_56]

RH headlamp was faded with LH replaced twice.



Headlamp RH - 35121M59K00 - ₹ 3,450.00

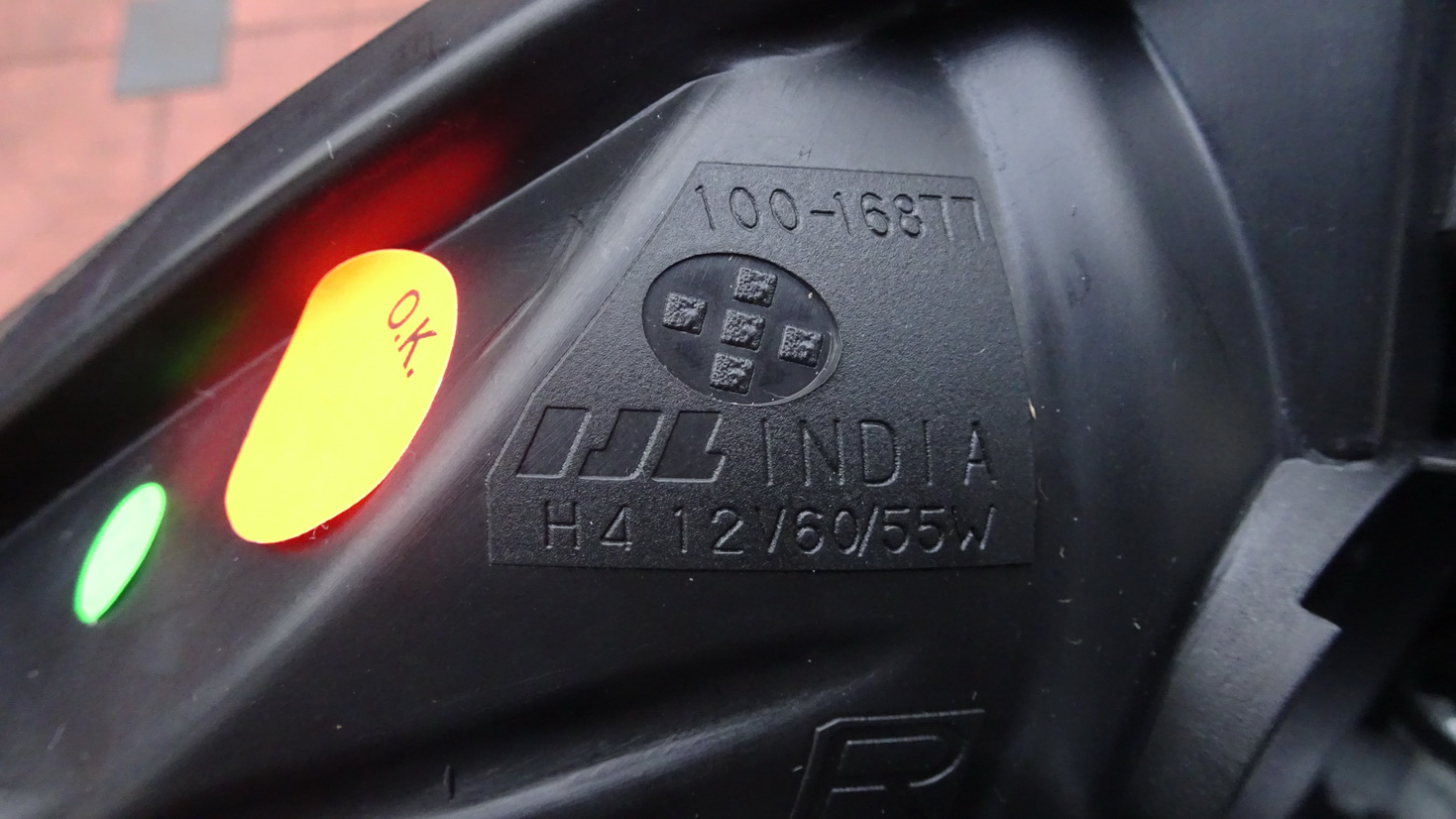

Made by IJL (India Japan Lighting)(Lucas TVS and Koito Japan JV)




Comes with motor and rubber cup.

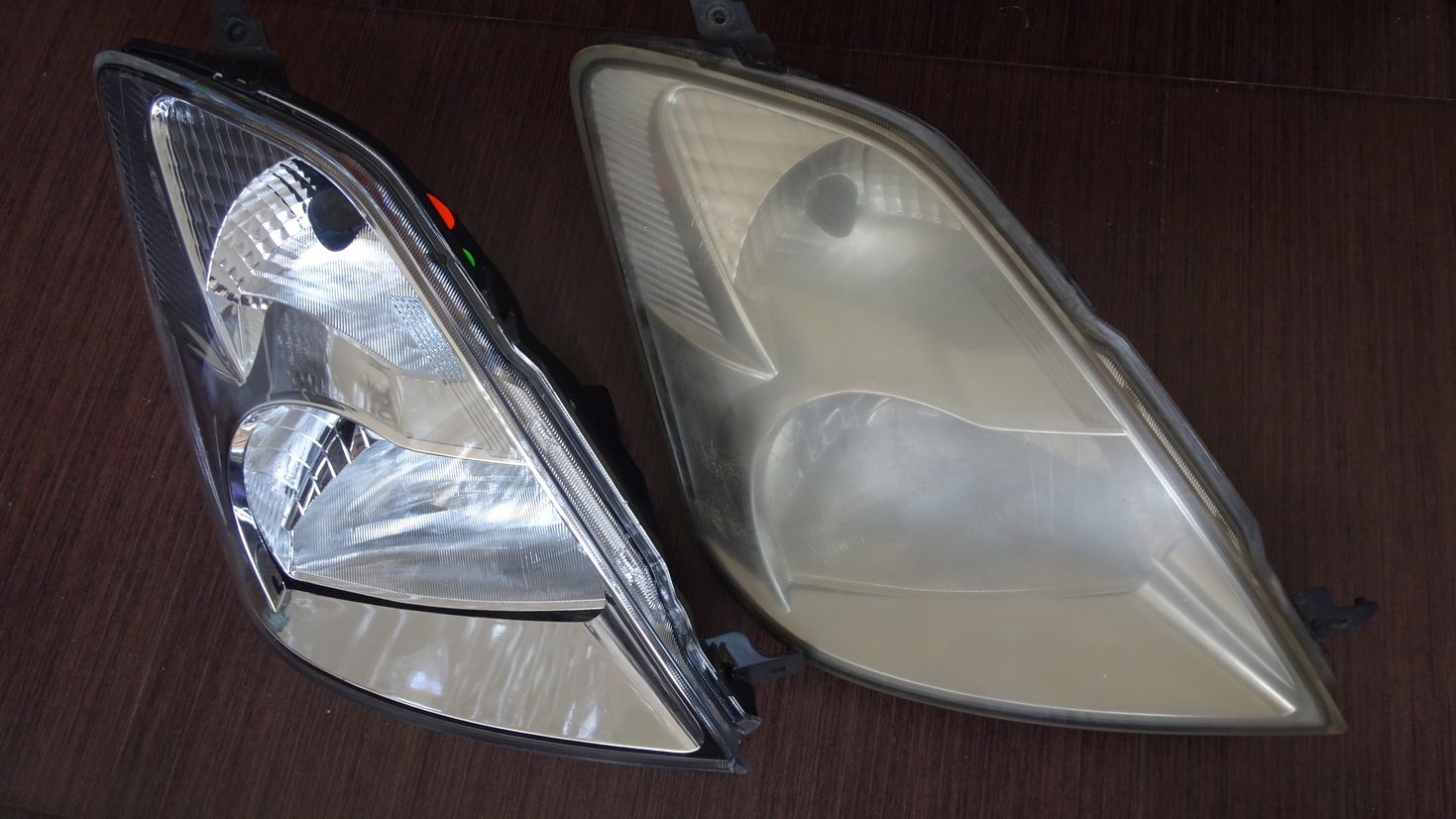

Old vs. new.




Installation + wiper fluid tubing replacement.




With new lights.





Power window switch konked off, leaving motor always ON, konking that also. Replacement would cost 4k, now managing without a window




With all my boys.




My favorite pose




Squeezed in when parking is full



[prasadvs]

hello brother
how to dismantle the wiper arm



[deville_56]

hello brother
how to dismantle the wiper arm

Remove plastic/rubber cover over nut, remove the nut, shake and pull the arm. This would remove the whole arm from motor shaft. Remove blades only after removing arm (if needed) as arm can bounce back cracking the windshield.



[deville_56]

Oil change after a long long time

Motul 4100 Power - 5W30 - ₹ 1,310.00 (MRP ₹ 1,355.00)

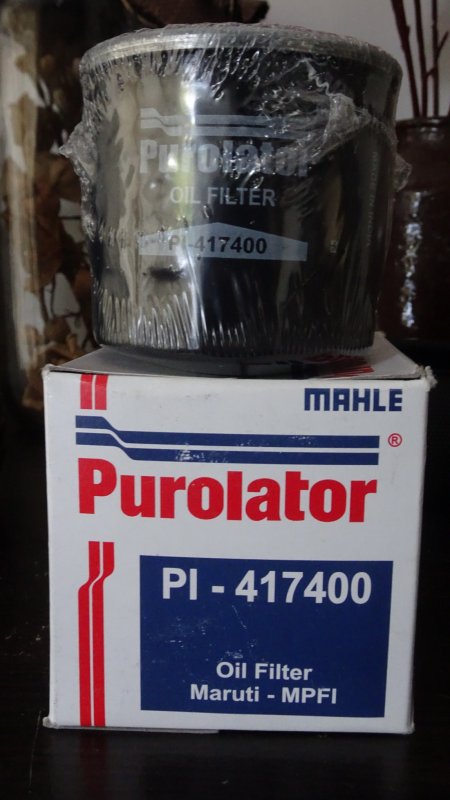

Purolator Air Filter + Purolator Oil Filter + Drain Bolt Gasket - ₹ 250.00 (Around ₹30 off)




Rust in exhaust, but no leak like Hyundais




DIY'd




Last one was Shell Rimula, ran some 6k in 1.5 years.



[VISHNUCARCRAZY]

Maruti recommends )0-W20 for petrol cars right?
And for diesels only it recommends 5W-30?



[deville_56]

Maruti recommends )0-W20 for petrol cars right?
And for diesels only it recommends 5W-30?

F10D recommended is 20W40. MGP Servo and Helix comes in 5W30. Maruti themselves switches grade every now and then.



[deville_56]

May 2018:

Hits 80k mark. 11 years.




July 2018:

Meets her doppelgänger



[deville_56]

July 2018:

Crazy stupid ideas

Alignment ritual

October 2018:

Heading garage after 2 long years

Ready to roll. Daily runner again after dormant for a year. Serviced at Sri Hari Automobiles. Did suspension, brake and steering overhaul. Changed power window regulator on driver door. Asked him specifically to change drive shaft, which he didn't and now started making noise even in straight line. Changed both strut assemblies as well.

Parts:
Wheel Cylinder LH - ₹ 470.00
Lower Arm LH - ₹ 580.00
Winder Assembly with Motor RH - ₹ 1,998.00
Strut Assembly - ₹ 2,810.00 - x2
Balance Rod Bush Kit - ₹ 168.00
Brake Fluid - 250 ml - ₹ 120.00
Screw - ₹ 5.00 - x6
End Pin - ₹ 6.00 - x4
Bulb - ₹ 18.00
12 mm Nu - t₹ 8.00 - x2
Grease - ₹ 75.00
Steering Rack Bush - ₹ 120.00
Steering Plunger - ₹ 298.00

Labor:
General Checkup - ₹ 350.00
Engine Tuning - ₹ 350.00
Suspension Overhaul - ₹ 1,300.00
Steering Box Overhaul - ₹ 900.00
Brake Overhaul - ₹ 800.00
RH Glass Regulator Replacement - ₹ 250.00
Wash - ₹ 600.00

Total: ₹ 14,087.00



[deville_56]

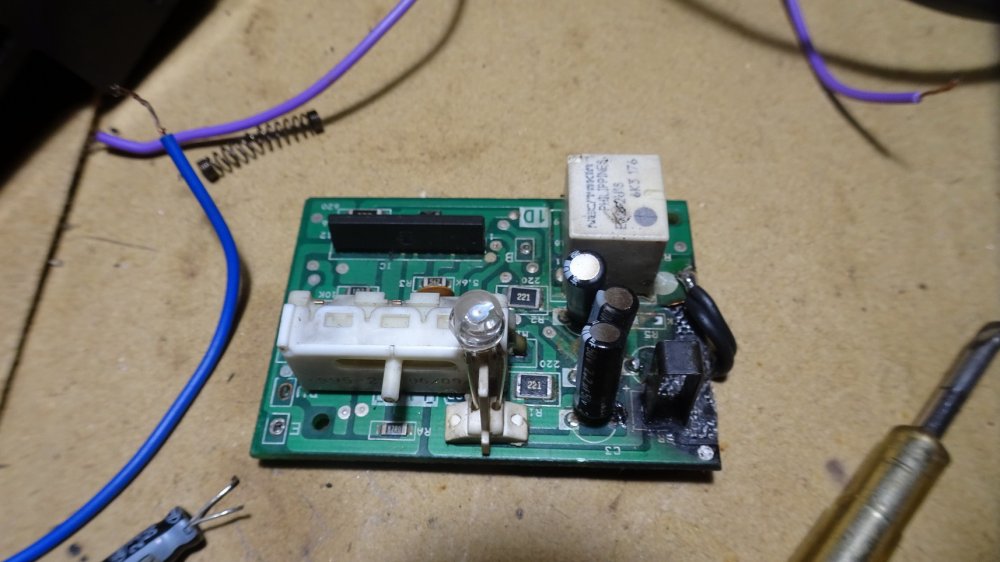

Repaired the power window switch.

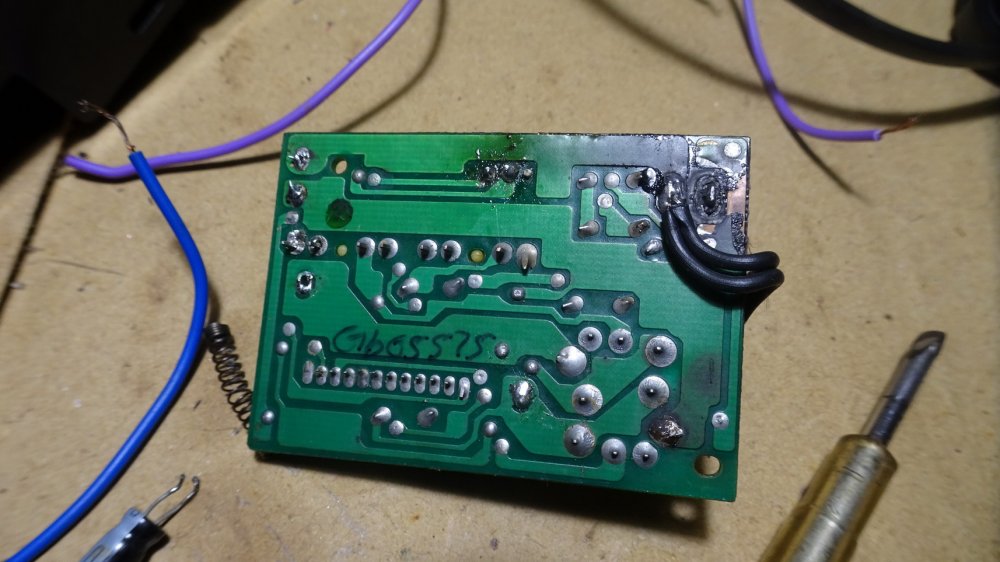

Burnt PCB. Jumped with wire.

Changed back light to red.



[Vishak]

Oil change after a long long time

Do you have an oil filter removal tool if so can you please post the pic of one you use
I intend to do DIY oil change this time since I am far from hometown and I don't trust the mechs here
