F1-style LED brakelights for FZ

[linkin]

That's great man.Can u tell me the details..
1.What are all required??
2.Circuit connections??
3.Where can we get these LED??



[deville_56]

Dude.. that was simply awesome.! Am looking for the same kinda LED's for my rear fog lamps on my swift.. ! really liked your light. Great work!!

daanx

That's great man.Can u tell me the details..
1.What are all required??
2.Circuit connections??
3.Where can we get these LED??

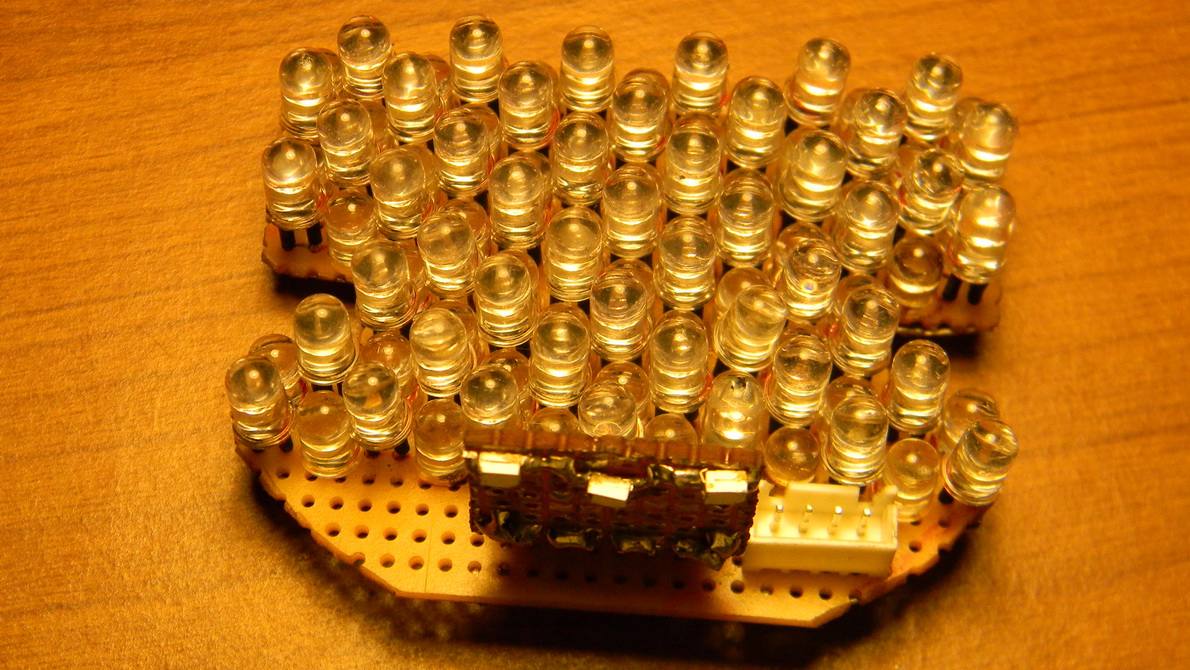

1. high bright LEDs, resitors, Dotted PCB, diodes, and a local chineese LED flasher, in case you need flashing.

2. Connection and values in the above attached snap.

3. They are available in every electronics spare shop. Cost 1 -3 bucks depending on color.



[ilango[speed thirst]]

Just now noticed this here . i saw it in your orkut profile!!
good diy ,
cheers



[deville_56]

More stable final version out . Strobe controller now in full action, new modes











Watch it in full action

Barricade and LEDs - YouTube



[ACMohan]

Great work buddy.

I also want that in my swift for the rear fog lamp.
