Aftermarket Tacho Meter / RPM Meter

[GJ101]

I did inquiry with showroom peoples they said i10 don't have RPM meter installed in any model also they don't recommend get installed from outside it will void warranty.



[sreejeshtpl]

Varun, don't have the diagram with me now. Please refer the photo given.



[Varun560061]

Thanks for sharing, Ignition power means signal rite ? then what is ignition coil ?

Please explain..



[saishibu38380]

@dhuruv for your nano. cheap and best option is to use to the android mobile and the obd 2 protocol. this works well and i have the full version of torque any one can PM me



[emon]

Can someone plz help whre can i connect this tachometer in the diesel engine. toyota 2LT the blue wire should be connected to which teriminal in diesel engine.



[sreejeshtpl]

Thanks for sharing, Ignition power means signal rite ? then what is ignition coil ?

Please explain..

Red wire for the power and the green wire goes to the -ve of ignition coil for the signals. Sorry if it made confusion.



[Shantanu.lko]

Yes it is due to high voltage..fluctuation is due to ignition coil, it generates up to 17 to 18volts. Our tacho can take upto 14 volts..

If the RPM meters are blowing off or the needle is vibrating it is due to excessive and uneven voltage. Maybe this circuit can help.

This Circuit provides a constant 12V output from 11v to 18v input. The parts used can be easily found in any electronic repair or spares shop. The most important thing is to use a good heat-sink with this IC as it heats up a lot to control the voltage.

I have used this circuit many a times with combination of 7895 IC to provide constant 12v 5v output to many electrical components.



[Varun560061]

Red wire for the power and the green wire goes to the -ve of ignition coil for the signals. Sorry if it made confusion.

Thanks, I just got confused that's it .

If the RPM meters are blowing off or the needle is vibrating it is due to excessive and uneven voltage. Maybe this circuit can help.

Thanks for the info I will try and update ..



[sreejeshtpl]

Hi I have installed the tacho in my 800.
Did some DIYs. Made a meter cage for the tacho out of acrylic sheet, changed the tachometer light to white LED etc.



[Varun560061]

Very neatly installed, have you made any clamp ? I can also see the speedo light in blue ? DIY ?



[sreejeshtpl]

Very neatly installed, have you made any clamp ? I can also see the speedo light in blue ? DIY ?

Clamp also I made with acrylic sheet and the speedo of course a DIY



[Varun560061]

Any pic's of the clamp ? SS80 was in hunt of changing the back lights of the speedo please share them..



[ss80]

Hi I have installed the tacho in my 800.
Did some DIYs. Made a meter cage for the tacho out of acrylic sheet, changed the tachometer light to white LED etc.

View attachment 49679

View attachment 49680

Hi sreejesh,

Please post a DIY thread about your tacho install with as many pictures as possible. I am hunting for a good clamp & a reasonably priced tacho. Your DIY will help us a lot.



[rakeshkn]

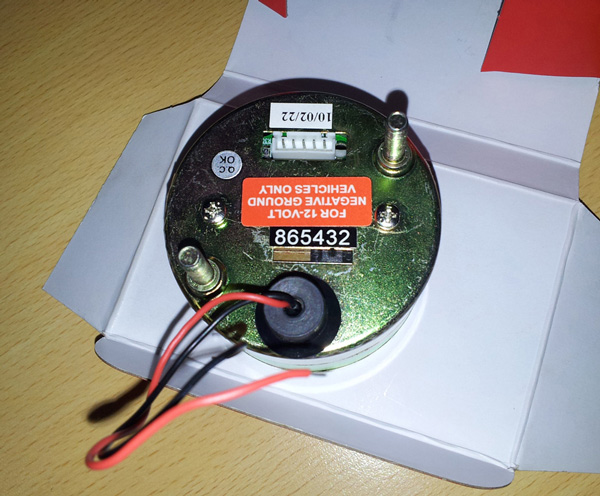

This Autogauge tacho can fit in a 2,3,4,5,6,8 cylinder cars, costs Rs.1800/-

View attachment 49329

View attachment 49330

Hey Sreejesh were from you source this? please share the link or shop name



[deville_56]

@varun - Finally cracked the ECU signal. Compared all Suzuki manuals and reached conclusion Brown wire is ECM signal for tacho. Searched speedo unit coupler for brown wire and oyla only one brown wire. Dared to connect it and it worked. Needle went all the way upto redline (most installs showed unly 4k at redlining because of half split distributor signal in Wagon R and Estilo)
