Royal Enfield 350 Electra 2008: Restoration and Upgrades
- Thread Starter Ilangop
- Start date
Thread Starter
#17
Wiring harness upgrade

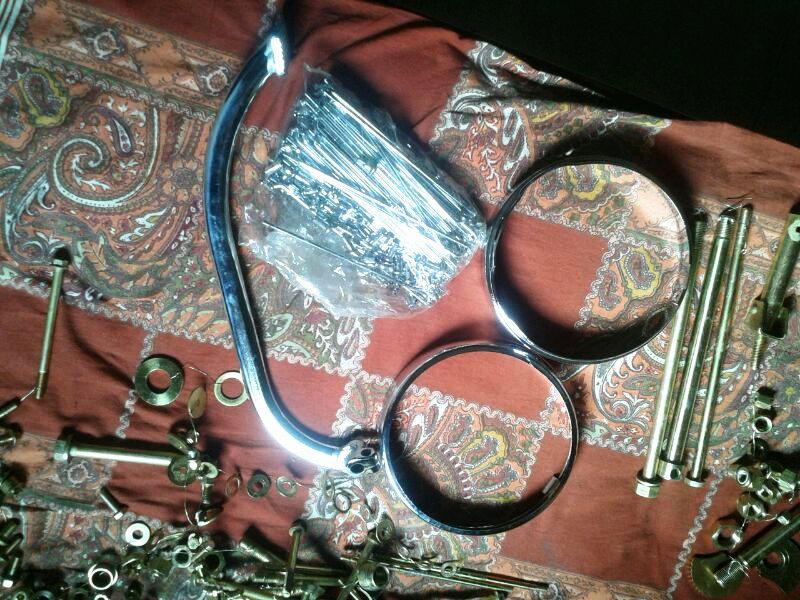

The 2 day weekend gave us some time to crawl a little ahead. Plated and buffed parts have arrived.
Deciphering the Bajaj Pulsar wiring harness and matching it for Bullet was fun.
Yes, this Electra is going to have the illuminated switch console, Indicator auto cut-off sensor, BCU & wiring harness of P220 without damaging its classic looks.
Also the rectifier is being replaced with Bajaj GC1000 rectifier unit for having a Battery charge warning lamp.
Attached are some pictures of the new standard size cylinder & piston, Wiring harness testing in progress, & the plated parts. We were told that in place of the 3rd single ring
a 3 ring arrangement has been the latest update in the market & we went for it.
Guys, has someone fitted an oil pressure switch like in a car? The last picture is of a bullet which has one. It was parked somewhere near a shop and the owner wasn't seen there.
The 2 day weekend gave us some time to crawl a little ahead. Plated and buffed parts have arrived.
Deciphering the Bajaj Pulsar wiring harness and matching it for Bullet was fun.
Yes, this Electra is going to have the illuminated switch console, Indicator auto cut-off sensor, BCU & wiring harness of P220 without damaging its classic looks.
Also the rectifier is being replaced with Bajaj GC1000 rectifier unit for having a Battery charge warning lamp.
Attached are some pictures of the new standard size cylinder & piston, Wiring harness testing in progress, & the plated parts. We were told that in place of the 3rd single ring
a 3 ring arrangement has been the latest update in the market & we went for it.
Guys, has someone fitted an oil pressure switch like in a car? The last picture is of a bullet which has one. It was parked somewhere near a shop and the owner wasn't seen there.
